Cush-A-Clamp®

Available from ZSI-Foster

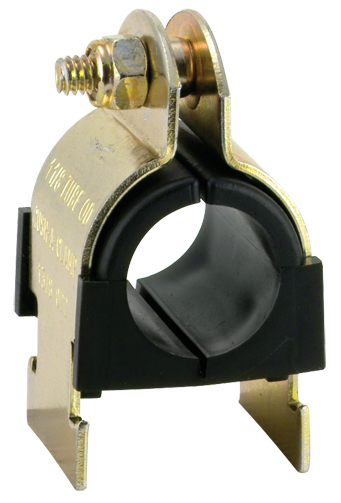

CUSH-A-CLAMP® — Channel mounted clamping systems are ideal for multiple line runs, while absorbing shock and vibration, reducing unwanted noise and preventing galvanic corrosion.

Cush-A-Clamp® fits any standard 1-5/8" wide channel.
Assembly consisting of steel clamp with locknut
and thermoplastic elastomer cushion. All parts are marked
for easy identification and packaged for small lot or bulk
use. When specified, Cush-A-Clamp® assemblies up to 2", are available individually packaged.

THE CLAMP — Features a unique shoulder stud which is securely fastened to one clamp half. Steel clamps for tube sizes up to 1-3⁄8" have the “Controlled Squeeze™” design which eliminates over-tightening and rotation while a nylon-insert nut assures a positive lock. Clamps are available in steel (with electro-dichromate finish), and stainless steel
type 304. (Contact factory for type 316).

THE CUSHION — Manufactured from a thermoplastic elastomer, it’s built tough to withstand the effects of most oils, chemicals and industrial cleaning compounds, in temperatures from -50°F to 275°F. A patented “Living Hinge” allows the cushion to be spread apart for quick, easy installation. Interlock edges and channel locator legs ensure that the cushion remains in place.

INSTALLATION — One man, one tool time savings. Retrofits can be added without disassembly. A patented “Living Hinge” allows the cushion to be spread apart for quick, easy installation on sizes from 1⁄4" through 1-3/4".
