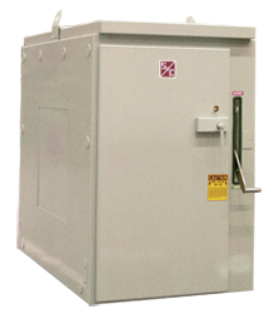

PMX™ Modular Metal-Enclosed Switchgear
Available from S&C Electric Company
Combines the solid features of S&C System II Modular Metal-Enclosed Switchgear with the size and economic benefits of S&C Pad-Mounted Gear. The pre-engineered modules are designed for easy assembly into switchgear lineups to suit a variety of applications.
With ratings of 13.8 and 25 kV, switching for both entrance and feeder modules is handled by the rugged S&C Mini-Rupter® Switch, offering up to 600 amperes full-load dropping and 25,000 amperes duty-cycle fault-closing operations. Fault protection is provided by the full range of permanently accurate S&C Power Fuses including the S&C Fault Fiter® Electronic Power Fuse.
Each module is designed to withstand the rigorous “poke-and-pry” test required of all Pad-Mounted Gear (ANSI C57.12.28). This, combined with the low-profile and compact size, allows PMX Switchgear to be installed in areas accessible to the public without special site considerations.
