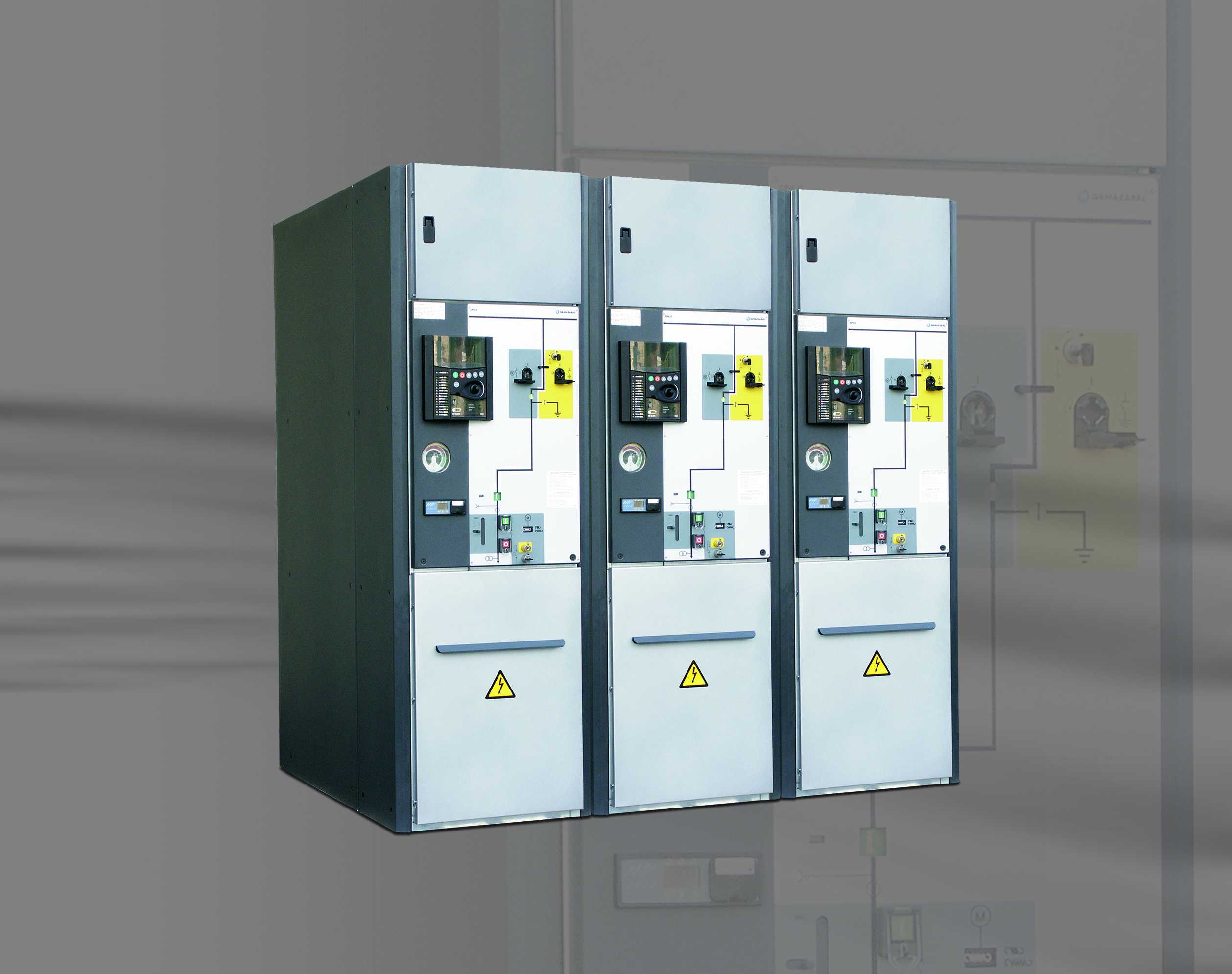

CPG.0 System Electrical Switchgear for Primary Distribution
Available from Ormazabal
The CPG.0 cubicle range of the CPG system consists of a series of SF6 gas-insulated single busbar modular cubicles, GIS-type, for configuring different schemas for primary distribution in Medium Voltage networks up to 36 kV.
Technical Characteristics
Rated voltage : 24 kV / 36 kV
Rated busbar current : Up to 1600 A / Up to 1600 A
Rated outgoing feeder current : Up to 1600 A / Up to 1250 A
Max. Short-time current : 25 kA/3s / 25 kA/3s
