CPG.1 System Electrical switchgear for Primary Distribution

Product Details

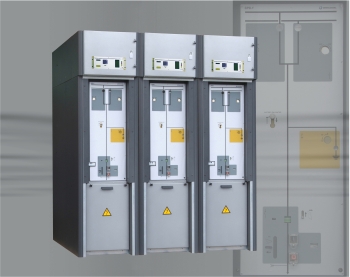

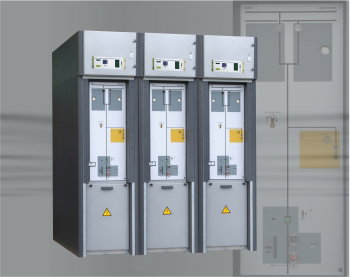

The CPG.1 cubicle range of the CPG system consists of a series of SF6 gas-insulated simple and double busbar modular cubicles, GIS-type, for configuring different schemas for primary distribution in Medium Voltage networks up to 36 kV.

Technical Characteristics
Rated voltage : Up to 24 kV/36kV
Rated busbar
current : Up to 2000 A / Up to 2000 A
Rated outgoing feeder
current : Up to 2000 A / Up to 2000 A
Max. Short-time
current : 31,5 kA/3s 31,5 kA/3s
